WebRTC

WebRTC is an online real-time communication solution open-sourced by Google. In simple terms, it is an internet audio and video conference system. As it follows the RFC standard protocol and is supported by browsers, its boundaries are constantly expanding. It is used in low-latency audio and video scenarios, such as online meetings, live streaming video chat with guests, low-latency live broadcasts, remote robot control, remote desktop, cloud video game, smart doorbells, and live web page streaming.

WebRTC is essentially a standard for direct communication between two web browsers, mainly consisting of signaling and media protocols. Signaling deals with the negotiation of capabilities between two devices, such as supported encoding and decoding abilities. Media handles the encryption and low-latency transmission of media packets between devices. In addition, WebRTC itself also implements audio processing technologies like 3A, network congestion control such as NACK, FEC, and GCC, audio and video encoding and decoding, as well as smooth and low-latency playback technologies.

+----------------+                        +----------------+
+    Browser     +----<--Signaling----->--+    Browser     +
+ (like Chrome)  +----<----Media----->----+ (like Chrome)  +
+----------------+                        +----------------+

Note: WebRTC is now an official RFC standard, so it is supported by various browsers. There are many open-source implementations, making it available not only in browsers but also in mobile browsers and native libraries. For simplicity, in this post, the term "browser" refers to any client or device that supports the WebRTC protocol.

In reality, on the internet, it's almost impossible for two browsers to communicate directly, especially when they're not on the same local network and are located far apart, like in different cities or countries. The data transfer between the two browsers goes through many network routers and firewalls, making it hard to ensure good transmission quality. Therefore, in practical applications, data needs to be relayed through servers. There are several types of WebRTC servers to help with this process:

  • Signaling Server: This is a service that helps two browsers exchange SDP (Session Description Protocol) information. For multi-person conferences, room services are needed, but the main purpose is still to exchange SDP between browsers. In the streaming media field, to enable WebRTC for streaming and playback, similar to RTMP/SRT/HLS streaming, the WHIP/WHEP protocols have been designed.
  • TURN Server: Relay service that helps two browsers forward media data between them. This is a transparent forwarding service without data caching, so during multi-person meetings, browsers need to transfer N*N + N*(N-2) copies of data. It is generally used in very few communication scenarios, such as one-on-one.
  • SFU Server: Selective forwarding service with cached data on the server, allowing browsers to upload only one copy of data, which the server then replicates to other participants. SRS is an example of an SFU. For more information on SFU's role, refer to this link. Most current WebRTC servers are SFU servers, with N*N streams being transferred, reducing the amount of data transfer by N*(N-2) compared to TURN servers. This helps solve most transmission issues.
  • MCU Server: Multipoint Control Unit Server, the server merges the streams in a conference into one, so the browser only needs to transfer N*2 sets of data, uploading one and downloading one. However, due to the need for encoding and decoding, the number of streams supported by the server is an order of magnitude less than SFU, and it is only used in certain specific scenarios. For more details, refer to #3625.

We primarily focus on explaining the SFU (Selective Forwarding Unit) workflow, as it is widely used in WebRTC servers, and it essentially functions like a browser:

+----------------+                        +---------+
+    Browser     +----<--Signaling----->--+   SFU   +
+ (like Chrome)  +----<----Media----->----+  Server +
+----------------+                        +---------+

Note: Generally, SFUs have Signaling capabilities. In fact, RTMP addresses can be considered as a very simplified signaling protocol. However, WebRTC signaling requires more complex negotiation of media and transport capabilities. In complex WebRTC systems, there might be separate Signaling and Room clusters, but SFUs also have simplified Signaling capabilities, which may be used for communication with other services.

SRS is a media server that provides Signaling and SFU Server capabilities. Unlike other SFUs like Janus, SRS is based on streams. Even though there can be multiple participants in a room, essentially, someone is pushing a stream, and others are subscribing to it. This way, it avoids coupling all the streams in a room to a single SFU transmission and can distribute them across multiple SFU transmissions, allowing for larger conferences with more participants.

SRS supports signaling protocols WHIP and WHEP. For more details, please refer to the HTTP API section. Unlike live streaming, signaling and media are separated, so you need to set up Candidates, see Candidate. Media uses UDP by default, but if UDP is unavailable, you can use TCP as described in TCP. If you encounter issues, it could be due to incorrect Candidate settings or firewall/port restrictions, refer to Connectivity and use the provided tools to check. SRS also supports converting between different protocols, such as streaming RTMP and viewing with WebRTC, as explained in RTMP to WebRTC, or streaming with WebRTC and viewing with HLS, as described in RTC to RTMP.

SRS supported the WebRTC protocol in 2020. For more information on the development process, please refer to #307.

Config

There are some config for WebRTC, please see full.conf for more:

rtc_server {
    # Whether enable WebRTC server.
    # Overwrite by env SRS_RTC_SERVER_ENABLED
    # default: off
    enabled on;
    # The udp listen port, we will reuse it for connections.
    # Overwrite by env SRS_RTC_SERVER_LISTEN
    # default: 8000
    listen 8000;
    # For WebRTC over TCP directly, not TURN, see https://github.com/ossrs/srs/issues/2852
    # Some network does not support UDP, or not very well, so we use TCP like HTTP/80 port for firewall traversing.
    tcp {
        # Whether enable WebRTC over TCP.
        # Overwrite by env SRS_RTC_SERVER_TCP_ENABLED
        # Default: off
        enabled off;
        # The TCP listen port for WebRTC. Highly recommend is some normally used ports, such as TCP/80, TCP/443,
        # TCP/8000, TCP/8080 etc. However SRS default to TCP/8000 corresponding to UDP/8000.
        # Overwrite by env SRS_RTC_SERVER_TCP_LISTEN
        # Default: 8000
        listen 8000;
    }
    # The protocol for candidate to use, it can be:
    #       udp         Generate UDP candidates. Note that UDP server is always enabled for WebRTC.
    #       tcp         Generate TCP candidates. Fail if rtc_server.tcp(WebRTC over TCP) is disabled.
    #       all         Generate UDP+TCP candidates. Ignore if rtc_server.tcp(WebRTC over TCP) is disabled.
    # Note that if both are connected, we will use the first connected(DTLS done) one.
    # Overwrite by env SRS_RTC_SERVER_PROTOCOL
    # Default: udp
    protocol udp;
    # The exposed candidate IPs, response in SDP candidate line. It can be:
    #       *           Retrieve server IP automatically, from all network interfaces.
    #       $CANDIDATE  Read the IP from ENV variable, use * if not set.
    #       x.x.x.x     A specified IP address or DNS name, use * if 0.0.0.0.
    # @remark For Firefox, the candidate MUST be IP, MUST NOT be DNS name, see https://bugzilla.mozilla.org/show_bug.cgi?id=1239006
    # @see https://ossrs.net/lts/zh-cn/docs/v4/doc/webrtc#config-candidate
    # Overwrite by env SRS_RTC_SERVER_CANDIDATE
    # default: *
    candidate *;
}

vhost rtc.vhost.srs.com {
    rtc {
        # Whether enable WebRTC server.
        # Overwrite by env SRS_VHOST_RTC_ENABLED for all vhosts.
        # default: off
        enabled on;
        # Whether support NACK.
        # default: on
        nack on;
        # Whether support TWCC.
        # default: on
        twcc on;
        # Whether enable transmuxing RTMP to RTC.
        # If enabled, transcode aac to opus.
        # Overwrite by env SRS_VHOST_RTC_RTMP_TO_RTC for all vhosts.
        # default: off
        rtmp_to_rtc off;
        # Whether enable transmuxing RTC to RTMP.
        # Overwrite by env SRS_VHOST_RTC_RTC_TO_RTMP for all vhosts.
        # Default: off
        rtc_to_rtmp off;
    }
}

The config rtc_server is global configuration for RTC, for example:

  • enabled：Whether enable WebRTC server.
  • listen：The udp listen port, we will reuse it for connections.
  • candidate：The exposed candidate IPs, response in SDP candidate line. Please read Config: Candidate for detail.
  • tcp.listen: Whether enable WebRTC over TCP. Please read WebRTC over TCP for detail.

For each vhost, the configuration is rtc section, for example:

  • rtc.enabled：Whether enable WebRTC server for this vhost.
  • rtc.rtmp_to_rtc：Whether enable transmuxing RTMP to RTC.
  • rtc.rtc_to_rtmp：Whether enable transmuxing RTC to RTMP.
  • rtc.stun_timeout：The timeout in seconds for session timeout.
  • rtc.nack：Whether support NACK for ARQ.
  • rtc.twcc：Whether support TWCC for congestion feedback.
  • rtc.dtls_role：The role of dtls when peer is actpass: passive or active.

Config Candidate

Please note that candidate is essential important, and most failure is caused by wrong candidate, so be careful.

The easiest method to modify the candidate involves indicating the eip in the URL. For instance, if your server is 192.168.3.10, utilize this URL:

Moreover, the easiest and most direct method to modify the default UDP port 8000, particularly when it is behind a load balancer or proxy, involves utilizing the eip. For example, if you employ UDP 18000 as the port, consider using this URL:

As it shows, candidate is server IP to connect to, SRS will response it in SDP answer as candidate, like this one:

type: answer, sdp: v=0
a=candidate:0 1 udp 2130706431 192.168.3.6 8000 typ host generation 0

So the 192.168.3.6 8000 is an endpoint that client could access. There be some IP you can use:

  • Config as fixed IP, such as candidate 192.168.3.6;
  • Use ifconfig to get server IP and pass by environment variable, such as candidate $CANDIDATE;
  • Detect automatically, first by environment, then use server network interface IP, such as candidate *;, we will explain at bellow.
  • Specify the ?eip=x in URL, such as: webrtc://192.168.3.6/live/livestream?eip=192.168.3.6
  • Normally API is provided by SRS, so you're able to use hostname of HTTP-API as candidate, we will explain at bellow.

Configurations for automatically detect the IP for candidate:

  • candidate *; or candidate 0.0.0.0; means detect the network interface IP.
  • use_auto_detect_network_ip on; If disabled, never detect the IP automatically.
  • ip_family ipv4; To filter the IP if automatically detect.

Configurations for using HTTP-API hostname as candidate:

  • api_as_candidates on; If disabled, never use HTTP API hostname as candidate.
  • resolve_api_domain on; If hostname is domain name, resolve to IP address. Note that Firefox does not support domain name.
  • keep_api_domain on; Whether keep the domain name to resolve it by client.

Note: Please note that if no candidate specified, SRS will use one automatically detected IP.

In short, the candidate must be a IP address that client could connect to.

Use command ifconfig to retrieve the IP:

# For macOS
CANDIDATE=$(ifconfig en0 inet| grep 'inet '|awk '{print $2}')

# For CentOS
CANDIDATE=$(ifconfig eth0|grep 'inet '|awk '{print $2}')

# Directly set ip.
CANDIDATE="192.168.3.10"

Pass it to SRS by ENV:

env CANDIDATE="192.168.3.10" \
  ./objs/srs -c conf/rtc.conf

For example, to run SRS in docker, and setup the CANDIDATE:

export CANDIDATE="192.168.3.10"
docker run --rm --env CANDIDATE=$CANDIDATE \
  -p 1935:1935 -p 8080:8080 -p 1985:1985 -p 8000:8000/udp \
  ossrs/srs:5 \
  objs/srs -c conf/rtc.conf

Note：About the usage of srs-docker, please read srs-docker.

Stream URL

In SRS, both live streaming and WebRTC are based on the concept of streams. So, the URL definition for streams is very consistent. Here are some different stream addresses for various protocols in SRS, which you can access after installing SRS:

Remark: Since Flash is disabled, RTMP streams cannot be played in Chrome. Please use VLC to play them.

Before WHIP and WHEP were introduced, SRS supported another format with a different HTTP API format, but it still exchanged SDP. It is no longer recommended:

Note: SRT addresses are not provided here because their design is not in a common URL format.

WebRTC over TCP

In many networks, UDP is not available for WebRTC, so TCP is very important to make it highly reliable. SRS supports directly TCP transport for WebRTC, not TURN, which introduce a complex network layer and system. It also makes the LoadBalancer possible to forward TCP packets, because TCP is more stable than UDP for LoadBalancer.

  • All HTTP API, HTTP Stream and WebRTC over TCP reuses one TCP port, such as TCP(443) for HTTPS.
  • Support directly transport over UDP or TCP, no dependency of TURN, no extra system and resource cost.
  • Works very well with Proxy(Not Implemented) and Cluster(Not Implemented), for load balancing and system capacity.

Run SRS with WebRTC over TCP, by default the port is 8000:

docker run --rm -it -p 8080:8080 -p 1985:1985 -p 8000:8000 \
  -e CANDIDATE="192.168.3.82" \
  -e SRS_RTC_SERVER_TCP_ENABLED=on \
  -e SRS_RTC_SERVER_PROTOCOL=tcp \
  ossrs/srs:v5.0.60

Please use FFmpeg or OBS to publish stream:

ffmpeg -re -i ./doc/source.flv -c copy -f flv rtmp://localhost/live/livestream

Note: We config SRS by environment variables, you're able to use config file also.

Note: We use dedicated TCP port, for example, HTTP API(1985), HTTP Stream(8080) and WebRTC over TCP(8000), you're able to reuse one TCP port at HTTP Stream(8080).

HTTP API

SRS supports WHIP and WHEP protocols. After installing SRS, you can test it with the following links:

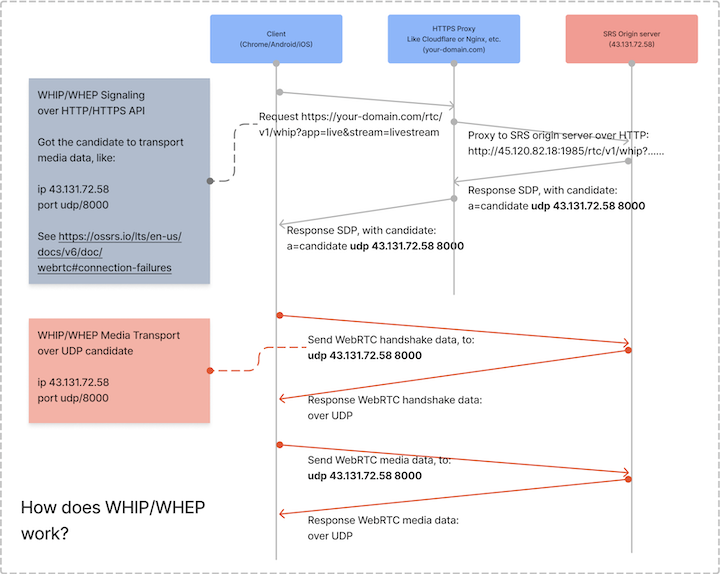

For details on the protocols, refer to WHIP and WHEP. Bellow is the workflow:

If you install SRS on a Mac or Linux, you can test the local SRS service with localhost. However, if you're using Windows, a remote Linux server, or need to test on other devices, you must use HTTPS for WHIP streaming, while WHEP can still use HTTP. To enable SRS HTTPS, refer to HTTPS API, or use a web server proxy like Nginx by referring to HTTPS Proxy.

If you need to test if the HTTP API is working properly, you can use the curl tool. For more details, please refer to Connectivity Check.

Connection Failures

Some developer come to SRS community to get help, because they get error when use OBS WHIP to connect to online WHIP server, because online server must use HTTPS and the UDP port might be more available, and it's hard to debug or login to the online server for privacy or network issue.

So we find some ways to troubleshoot the connection failures in OBS WHIP, generally it's caused by HTTPS API setup or UDP port not available issue.

Use curl to test WHIP HTTP or HTTPS API:

curl "http://localhost:1985/rtc/v1/whip/?ice-ufrag=6pk11386&ice-pwd=l91z529147ri9163933p51c4&app=live&stream=livestream-$(date +%s)" \
  -H 'Origin: http://localhost' -H 'Referer: http://localhost' \
  -H 'Accept: */*' -H 'Content-type: application/sdp' \
  -H 'User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7)' \
  --data-raw $'v=0\r\na=group:BUNDLE 0 1\r\nm=audio 9 UDP/TLS/RTP/SAVPF 111\r\nc=IN IP4 0.0.0.0\r\na=rtcp:9 IN IP4 0.0.0.0\r\na=ice-ufrag:J8X7\r\na=ice-pwd:Dpq7/fW/osYcPeLsCW2Ek1JH\r\na=setup:actpass\r\na=mid:0\r\na=sendonly\r\na=msid:- audio\r\na=rtcp-mux\r\na=rtpmap:111 opus/48000/2\r\na=ssrc:3184534672 cname:stream\r\nm=video 9 UDP/TLS/RTP/SAVPF 106\r\nc=IN IP4 0.0.0.0\r\na=rtcp:9 IN IP4 0.0.0.0\r\na=ice-ufrag:J8X7\r\na=ice-pwd:Dpq7/fW/osYcPeLsCW2Ek1JH\r\na=setup:actpass\r\na=mid:1\r\na=sendonly\r\na=msid:- video\r\na=rtcp-mux\r\na=rtpmap:106 H264/90000\r\na=ssrc:512761356 cname:stream' \
  -v -k

Note: You can replace http://localhost with https://yourdomain.com to test HTTPS API.

Note: For Oryx, you should specify the secret, so please change the /rtc/v1/whip?ice-ufrag= to /rtc/v1/whip?secret=xxx&ice-ufrag= as such.

Note: You can also use eip=ip or eip=ip:port to force SRS to use it as the candidate. Please see CANDIDATE for details.

The answer contains the candidate, the UDP server IP, such as 127.0.0.1:

a=candidate:0 1 udp 2130706431 127.0.0.1 8000 typ host generation 0

Use nc to send UDP packet to SRS WHIP server:

echo -en "\x00\x01\x00\x50\x21\x12\xa4\x42\x74\x79\x6d\x7a\x41\x51\x2b\x2f\x4a\x4b\x77\x52\x00\x06\x00\x0d\x36\x70\x6b\x31\x31\x33\x38\x36\x3a\x4a\x38\x58\x37\x00\x00\x00\xc0\x57\x00\x04\x00\x01\x00\x0a\x80\x2a\x00\x08\xda\xad\x1d\xce\xe8\x95\x5a\x83\x00\x24\x00\x04\x6e\x7f\x1e\xff\x00\x08\x00\x14\x56\x8f\x1e\x1e\x4f\x5f\x17\xf9\x2e\xa1\xec\xbd\x51\xd9\xa2\x27\xe4\xfd\xda\xb1\x80\x28\x00\x04\x84\xd3\x5a\x79" \
  |nc -w 3 -u 127.0.0.1 8000 |od -Ax -c -t x1 |grep '000' && \
  echo "Success" || echo "Failed"

Note: You also can use nc or server.go as the UDP server for test.

If use SRS as WHIP server, should response with:

0000000  001 001  \0   @   ! 022 244   B   t   y   m   z   A   Q   +   /
0000010    J   K   w   R  \0 006  \0  \r   6   p   k   1   1   3   8   6
0000020    :   J   8   X   7  \0  \0  \0  \0      \0  \b  \0 001 376   `
0000030    ầ  **  ** 027  \0  \b  \0 024 206 263   +   ʼn  ** 025   G 215
0000040    I 335   P   ^   "   7   }   N   ? 017 037 224 200   (  \0 004
0000050  303   < 250 272
0000054
Success

Note: Should be SRS 5.0.191+, see #3837, you can also use server.go as the UDP server for test.

RTMP to RTC

Please use conf/rtmp2rtc.conf as config.

export CANDIDATE="192.168.1.10"
docker run --rm --env CANDIDATE=$CANDIDATE \
  -p 1935:1935 -p 8080:8080 -p 1985:1985 -p 8000:8000/udp \
  ossrs/srs:5 \
  objs/srs -c conf/rtmp2rtc.conf

Note: Please set CANDIDATE as the ip of server, please read CANDIDATE.

Use FFmpeg docker to push to localhost:

docker run --rm -it ossrs/srs:encoder ffmpeg -stream_loop -1 -re -i doc/source.flv \
  -c copy -f flv rtmp://host.docker.internal/live/livestream

Play the stream in browser:

RTC to RTC

Please use conf/rtc.conf as config.

export CANDIDATE="192.168.1.10"
docker run --rm --env CANDIDATE=$CANDIDATE \
  -p 1935:1935 -p 8080:8080 -p 1985:1985 -p 8000:8000/udp \
  ossrs/srs:5 \
  objs/srs -c conf/rtc.conf

Note: Please set CANDIDATE as the ip of server, please read CANDIDATE.

Play the stream in browser:

Remark: Note that if not localhost, the WebRTC publisher should be HTTPS page.

RTC to RTMP

Please use conf/rtc2rtmp.conf as config.

export CANDIDATE="192.168.1.10"
docker run --rm --env CANDIDATE=$CANDIDATE \
  -p 1935:1935 -p 8080:8080 -p 1985:1985 -p 8000:8000/udp \
  ossrs/srs:5 \
  objs/srs -c conf/rtc2rtmp.conf

Note: Please set CANDIDATE as the ip of server, please read CANDIDATE.

The streams:

SFU: One to One

Please use conf/rtc.conf as config.

export CANDIDATE="192.168.1.10"
docker run --rm --env CANDIDATE=$CANDIDATE \
  -p 1935:1935 -p 8080:8080 -p 1985:1985 -p 8000:8000/udp \
  ossrs/srs:5 \
  objs/srs -c conf/rtc.conf

Note: Please set CANDIDATE as the ip of server, please read CANDIDATE.

Then startup the signaling, please read usage:

docker run --rm -p 1989:1989 ossrs/signaling:1

Use HTTPS proxy httpx-static as api gateway:

export CANDIDATE="192.168.1.10"
docker run --rm -p 80:80 -p 443:443 ossrs/httpx:1 \
    ./bin/httpx-static -http 80 -https 443 -ssk ./etc/server.key -ssc ./etc/server.crt \
          -proxy http://$CANDIDATE:1989/sig -proxy http://$CANDIDATE:1985/rtc \
          -proxy http://$CANDIDATE:8080/

To open http://localhost/demos/one2one.html?autostart=true

Or by the IP https://192.168.3.6/demos/one2one.html?autostart=true

Note: For self-sign certificate, please type thisisunsafe to accept it.

SFU: Video Room

Please follow SFU: One to One, and open the bellow demo pages.

To open http://localhost/demos/room.html?autostart=true

Or by the IP https://192.168.3.6/demos/room.html?autostart=true

Note: For self-sign certificate, please type thisisunsafe to accept it.

Room to Live

Please follow SFU: One to One, and please convert RTC to RTMP, for FFmpeg to mix the streams.

export CANDIDATE="192.168.1.10"
docker run --rm --env CANDIDATE=$CANDIDATE \
  -p 1935:1935 -p 8080:8080 -p 1985:1985 -p 8000:8000/udp \
  ossrs/srs:5 \
  objs/srs -c conf/rtc2rtmp.conf

If use FFmpeg to mix streams, there is a FFmpeg CLI on the demo page, for example:

ffmpeg -f flv -i rtmp://192.168.3.6/live/alice -f flv -i rtmp://192.168.3.6/live/314d0336 \
     -filter_complex "[1:v]scale=w=96:h=72[ckout];[0:v][ckout]overlay=x=W-w-10:y=H-h-10[out]" -map "[out]" \
     -c:v libx264 -profile:v high -preset medium \
     -filter_complex amix -c:a aac \
     -f flv rtmp://192.168.3.6/live/merge

Input:

  • rtmp://192.168.3.6/live/alice
  • rtmp://192.168.3.6/live/314d0336

Output:

  • rtmp://192.168.3.6/live/merge

Winlin 2020.02

©2013~2025 OSSRS Community

Official Address: 4711 Yonge St, North York, ON M2N 7E4, Canada
